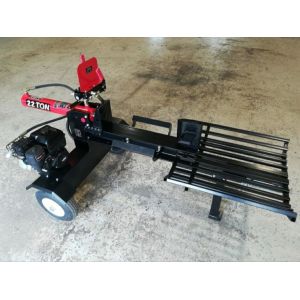

Two Handle Manual Firewood Log Splitter Engine With B&S Max Force 22 Ton

Name: Two Handle Manual Firewood Log Splitter Engine With BampS Max Force 22 Ton
Brand: TECHWAY
Price: 1 USD

Brand Name : TECHWAY

Model Number : TW-GS-22T03

Certification : CE

Place of Origin : China

MOQ : 10pcs

Price : negotiation

Supply Ability : 10pcs

Delivery Time : 20 working days after received your payment

Packaging Details : Packed in plywood box

Product Name : 22 ton log splitter

ENGINE : 6.5HP four stroke

PUMP : 11GAL TWO STAGE PUMP

RAM DIAMETER : 4.0INCH

RAM TRAVEL : 610MM

MAX FORCE : 22TON

Feature : two handle

Packing size : 2100x600x650mm

Weight : 230kgs/210kgs

Hydraulic oil : 22L

Position : horizonal and vertical

Packing : plywood box

Color : customized

Engine : B&S,Loncin,Honda

Contact Now

Firewood Manual Wood Splitter Max Force 22 ton Log Splitter Engine With B&S

22 Ton Log Splitter

The 22 ton log splitter is manual wood splitter, horizontal and vertical log splitter for optional. it ismanual hydraulic log splitter

CE tested and certificated by TÜV/BV.. coming with Gasoline engine or Diesel engine, recoil/electric start for choice.. Max. splitting length up to 610mm/990mm/1050mm.. Cycle time comes 12 seconds.. both horizontal and vertical operation available.

Portable.Small size,lightweight and built-in wheels make it easy to deliver this powerful tool to the work site. Powerful 4-ton power delivery by a beefy 55mm hydraulic cylinder will make short work of your log splitting task..

Electric powered.Convenient and reliable electric powered hydraulic system avoids the expense and hassle of maintaining a small gas engine.Just plug it in and start splitting..

Hydraulic ram.Powerful hydraulic ram splits logs in a safe controlled manner,without axes,sledge hammers or wedges.. Two-Hand Safety Control.Built-in safety design keeps your hands away from the log and splitter during operation.

Model	Specifictions	Packing
TWGLS12D	ENGINE:6.5HP FOUR STROKE RAM DIAMETER:2.5INCH RAM TRAVEL:550MM CONTROL VALVE:60L AUTO-RETURN HYDRAULIC PUMP:5GAL ONE STAGE MAX FORCE:12TON advance: CE certificate can be used in 3 positions,vertical,horizonal,and also 30 degree FAST SPEED FOR THE RAM.QUICK WORK	130/115kgs 40PCS/20FT 88pcs/40HQ plywood packing size 1160710480mm
TWGLS18D	Product name:log splitter Engine: B&S XR950 6.5HP Pump:11GAL two stage pump Split force:18TON Hydraulic oil:21pump Max size of wood:610mm Max dia of wood:550mm Cylinder size:4.0inch Blade: 2 blades (1x2 way , 1x4 way) Position: horizonal and vertical	220/195KGS 30pcs/20FT 72pcs/40HQ plywood packing size: 1740590630mm
TWGLS22D	Product name:log splitter ENGINE:6.5HP four stroke (Chinese) PUMP:8GAL TWO STAGE PUMP RAM DIAMETER:4.0INCH RAM TRAVEL:610MM CONTROL VALVE:100L AUTO-RETURN MAX FORCE:22TON TIRE:6.5-8INCH CYCLE TIME:14S CE certificate	230/220KGS 30pcs/20FT 72pcs/40HQ plywood packing size: 2100600650mm
TWGLS26D	Product name:log splitter ENGINE:6.5HP four stroke PUMP:11GAL TWO STAGE PUMP RAM DIAMETER:4.5INCH RAM TRAVEL:610MM CONTROL VALVE:100L AUTO-RETURN MAX FORCE:26TON TIRE:6.5-8INCH CYCLE TIME:14S CE certificate	240/220KGS 44pcs/20FT 96pcs/40HQ plywood packing size 1790510500mm
